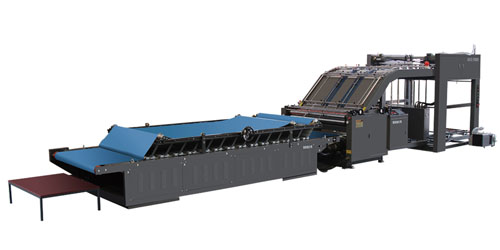

CX-1300/1450/1600 Automatic Flute Laminator
Release Time:2017/08/29 14:15:28   Browse:th

CX-1300/1450/1600 Automatic Flute Laminator

Technological parameter:

Model

CX-1300

CX-1450

CX-1600

Max size of cover face

1300X1100mm

1450X1100mm

1600mmX1100mm

Mix size of cover face

400mmX400mm

400mmX400mm

400mmX400mm

Economic speed

0-120 piece/min

0-120 piece/min

0-120 piece/min

Precision

±1.5MM

±1.5MM

±1.5MM

Power

10kw

10kw

10kw

Size

10m x 2m x 2.4m

10m x 2.2m x 2.4m

10m x 2.3m x 2.4m

Weight

About 5.5T

About 6.0T

About 6.0T

Major feature:
1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of  non-stop working , more efficient.
2.Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.
3.New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.
5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
6. Roller design scientifically, avoid glue fly out when the speed is high.
7.Pressure rollers adopt one side adjustment, convenient and fast.
8.Rocker controls wash roller's fluctuation, easy cleaning.
9. Counter designs scientifically, easy recording the amount you have been worked.
